JEAP 6 - cli 筆記

這篇是拿來當做是筆記,有人問我就Update 上來,
這些應該大家也不用背拉,因為小姐我也從來沒背過,(XD, 好像不太敬業)

基本上cli 的架構一點兒都不複雜,

1. 要怎麼執行cli呢?到 EAP_HOME/bin/下執行

$:~ EAP_HOME/bin/

2. 輸入connect IP:PORT 連接你的每個host controller

3. 離開請打 quit.

4. cli 的架構很簡單

  a. 路徑 (address) 在最前面加上斜線 "/"
  b. 作業 (operation) 在最前面的加上冒號 ":"
  c. 參數 (parameter) 這不是必要欄位,但是有的話可以使用括號包起來"()"

路徑的部分相對好找,只要使用ls 就可以慢慢,一層一層的下去,如下面的example 就是 從我的這台機器下,有一個host, host 進去有個hosttwo的 host controller, 進去之後的server-config 下有個server-four, 打下pwd 就會有要用的路徑拉!

作業的部分,很簡單,就是像剛剛那樣,進到你要用的resource 下打下 :read-operation-names 就可以show出所有可以用的operation拉!

參數的部分,是(名字=值) (parameter-name=parameter-value) 的方式打進去就好

1. 如果不使用Domain mode 的 controller 是否可以重開server 哩~
當然是可以拉,如果你懂的cli 的架構,就會發現standalone 跟 domain 其實就是差在一個address上而已!(Standalone 通常就是用default binding 的localhost而已..)

所以,我先connect 到我想要去的server上,打下stop 與 start就好哩!

聯結後單一的command, 如下:

/host= host_name/server-config=server_name:stop

2. 想要使用CLI 修改instance 上的heap size , 也是差不多的.
這裡使用domain 的方式, 依照先前的做法,先看一下JVM 內有啥可以設定的.

裡面有兩個參數,是我這次要用的,heap size 與 max heap size ,

因為這個case, 我的server two 是吃domain.xml 的設定,default 是跑先前在domain.xml 裡面的 jvm = default. (main-server-group 的 jvm 設定 )

登入 cil 後, 先到這次要變更的server two 下,新增一個jvm 叫做change

進入change 這個jvm 後,看一下有哪些參數可以變更,
cd jvm=change
ls -l

這次要變更的是heap size 與 max heap size.

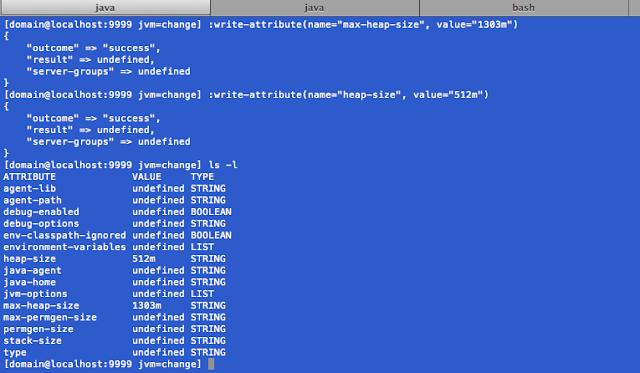

:write-attribute(name="heap-size", value="512")
:write-attribute(name="max-heap-size", value="1303")

修改後,可以去看一下host.xml 會發現裡面的參數已經更新了。

啟動server 後,看一下console 內的參數,就會翻現同樣都是main-server-group , 兩台的jvm 使起的設定已經變成不同了!
