JEAP 6 - 建立Remote Stateless Session Bean

新的 EE 6 與 EJB 3 讓建立 ejb 變得超簡單的!
因為剛好有人問Remote EJB 的問題,就順便介紹怎麼建立囉!

============================================
工具 : JBoss Developer Studio
平台 : JBoss Enterprise Application Platform 6
Java EE 版本: Java EE 6
============================================

1. 請確定你的本機已經安裝JBoss EAP 6 (unzip 後,執行add-user.sh or add-user.bat 加入使用者)
2. JBoss Developer Studio已經正確安裝,並且也設定好的Server. 以下為參考畫面



接下來就可以開始建立我們的第一個 EJB3 專案咧~

1. 在左邊的Project Explorer 上,按下滑鼠右鍵,選擇新建一個ejb的專案

2. 打入Project 的名字 (這個case 我打的是 MyEJBProject),如果你還沒有建立放置ejb 的EAR 檔,選擇 "Add project to an EAR" , 在裡面打上你想要取的EAR 名稱,或是你已經有了EAR 檔,那就選你要的EAR 名稱就好!打好後按下Next

3. 直接按下Next

4. 因為我還不想寫呼叫這個ejb 的client程式,所以先把 "Create an EJB Client to hold the client interface and classes." 的勾勾拿掉。按下Finish


這樣就可以看到我們的Project 完成拉!



5. 建立第一個Remote Session Bean,在ejb的專案中案滑鼠右鍵,選擇New, 然後Others
跳出視窗後,選擇 SessionBean(EJB3.x).

6. 替這個session bean 取名字,這次的session bean 是stateless, 所以選擇stateless. 然後幫這個bean 建立一個對外的remote interface.

7. 按下Finish 完成,之後,會看到自動產生的兩個Java 檔案。

8. 在 Remote interface上面加上我這次要加入的method 名稱。
(你會發現,自動產生的java 程式碼裡面,@Remote 的 annotation已經幫你家好了咧!)

9. 在真正的Bean 裡面寫上我們真正會執行的程式碼。

10. 發佈上Server部署,如果你成功的話,會看到以下的程式碼,表示你成功拉!


11. 寫個Client 程式測試剛剛的Session Bean. 先建立一個Java 的專案,

12. 幫這個Java 專案取個名字


13. 所有EJB 的Client 都必須要使用 JBoss 的jboss-client.jar,不然就call不到哩~所以先到專案上,按下滑鼠右鍵,選擇properties.

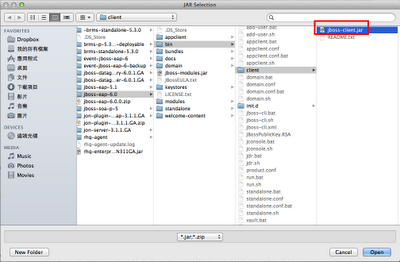

14. 在build path 上面,選擇加入 jboss-client.jar 這個外部的jar檔,通常,這個jar檔都會放在JBoss EAP6安裝路徑/bin/client底下.




15. 加入剛剛建立的EJB 專案的聯結




16.這樣就可以開始寫Client拉~一樣,先建立一個Class

17. 程式碼如下,
package redhat.client;

import java.util.Hashtable;

import javax.naming.Context;
import javax.naming.InitialContext;

import redhat.remotebeans.MyCallerRemote;

public class RemoteStatelessClient {
 public static void main(String ar[]) throws Exception{
        Context context=null;
        try{
         final Hashtable jndiProperties = new Hashtable();
            jndiProperties.put(Context.URL_PKG_PREFIXES, "org.jboss.ejb.client.naming");
            jndiProperties.put(Context.PROVIDER_URL, "remote://localhost:4447");
            jndiProperties.put( "jboss.naming.client.ejb.context", true );
            jndiProperties.put( Context.SECURITY_PRINCIPAL, "admin" );
            jndiProperties.put( Context.SECURITY_CREDENTIALS, "christina79" );
            jndiProperties.put(Context.INITIAL_CONTEXT_FACTORY, org.jboss.naming.remote.client.InitialContextFactory.class.getName());
            context = new InitialContext(jndiProperties);

        }catch (Exception e) {
              e.printStackTrace();
        }


        MyCallerRemote remote=(MyCallerRemote)context.lookup("ejb:MyEJBProjectEAR/MyEJBProject/MyCallerBean!redhat.remotebeans.MyCallerRemote");
        System.out.println(remote.callMyName("Christina"));
     }

}

18. 然後按滑鼠右鍵執行為Java Application, 如果成功,你就會看到以下的結果拉!
